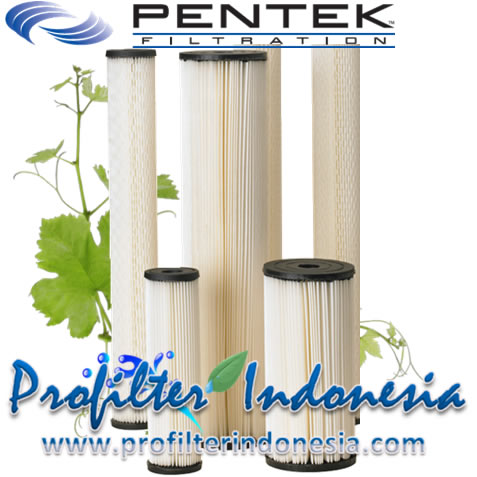

 Pentek S1-BB Pleated Cellulose Sediment Filter Cartridge

Pastikan Anda Mendapatkan Harga Dan Kualitas Terbaik

S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes.

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.

Features, Options, & Benefits

·         Pleated design maximizes dirt-holding capacity

·         Designed for general water filtration purposes

·         Recommended for chlorinated water supplies

·         Economically priced

·         Nominal 20-micron rating

Cartridge Specifications and Performance Data

Model : Pentek S1-BB

Maximum Dimensions : 4-1⁄2" x 9-3⁄4" (114 mm x 248 mm)

Micron Rating (nominal) : 20 micron

Initial ΔP (psi) @ Flow Rate (gpm) : 2.4 psi @ 10 gpm (0.17 bar @ 38 Lpm)

Surface Area : 2070 in.² (1.34 m²)

Recommended Flow Rate : 20 gpm (76 Lpm)

Materials of Construction

Filter Media : Resin-Impregnated Cellulose

End Caps : Vinyl Plastisol

Core : Polypropylene

Temperature Rating : 40–145ºF (4.4–62.8ºC)
