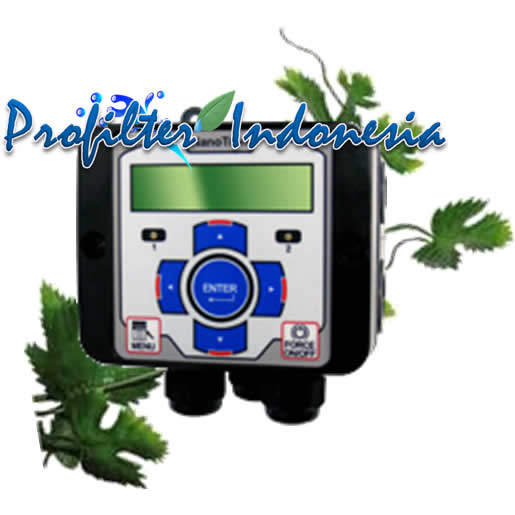

 Nano Tron Conductivity Controller

Description:

The NanoTron provides a compact dual relay microprocessor based controller with many standard features and the flexibility to adapt to a variety of applications.

The NanoTron's simple step through menu provides user-defined configuration of two timers that can operate independently.

Microprocessor Control of:

·         Conductivity

·         Feed Timer

·         Pulse

·         28-Day

·         Recycle

·         Post Bleed

·         Reminder

Key Features:

·         Compact Design

·         Simple Step Through Menu

·         NEMA 4X Enclosure

·         Raised Dome Keypad

·         User Selectable Timers

·         Non-Volatile Memory

·         2 Year Warranty

·         1 or 2 Water Meter Inputs

·         Dual Accumulators

·         Prewired Configuration

Applications:

NanoTron dual selectable timers are designed to automate the addition of various chemicals or activate other devices via a relay output. All units include:

·         Two totalizing water meter inputs that can be configured for contacting head or hall effect meter inputs in gallons or liters.

·         Two drum level inputs that can be set to disable the relay outputs.

·         Two mechanical relay outputs with normally open and normally closed contacts that can be configured for powered or dry contact relay operation.

·         A 'force on' timer that allows for manual activation of the relays for a user defined amount of time.

Specifications

Electrical

·         Input: 100-240 VAC, 50/60 Hz

·         Control: Input VAC, 3 Amp / relay Prewired units are supplied with an 8’ (248.84 cm) power cord and 8” (20.32 cm) output receptacles.

·         Water Meter: Dry contact Hall-effect; +5 VDC input

Operational

·         Conductivity Scale: 100-5000μS

·         Display: LCD 1 x 16 backlit alphanumeric

·         Timers (selectable):

o    Reminder: 1-99 days

o    With Bleed: HH:MM limit time

o    Post Bleed: 0-100%, HH:MM limit time

o    Pulse: 1-9999 counts, MM:SS run time

o    Recycle: HH:MM off cycle, MM:SS on cycle

o    28-Day: Weeks, Days, HH:MM run time

Enclosure

·         NEMA 4X style high impact thermoplastic

Environment

·         Ambient temperature: 0o to 125oF (-17 to 52oC)

·         Relative humidity: 0 to 100%
