Reverse Osmosis adalah proses pemisahan air murni melalui membrane semi serap dimana hasil ini digunakan pada industrial water treatment

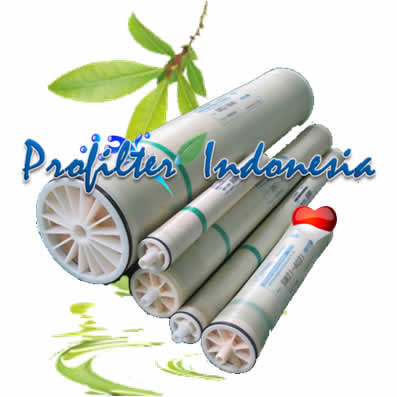

Hydranautics SWC5-LD

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

Spesifikasi

·         Active Area: 400 square feet

·         Operating Pressure: 800PSI

·         Capacity: 9,000GPD

·         Rejection: 99.8%

·         Membrane Type: Low Fouling Thin Film Composite

Configuration: Low Fouling Spiral Wound

Membrane Polymer: Composite Polyamide

Feed Spacer: 34 mil (0.864 mm) with biostatic agent

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 ^oF (45 ^oC)

pH Range, Continuous (Cleaning): 2-11 (1-13)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to

Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi

* The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more detail on operation limits, cleaning pH, and cleaning temperatures.

Test Conditions

The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:

32,000 ppm NaCl

800 psi (5.5 MPa) Applied Pressure

77 ^oF (25 ^oC) Operating Temperature

10% Permeate Recovery

6.5 - 7.0 pH Range
