Reverse Osmosis adalah proses pemisahan air murni melalui membrane semi serap dimana hasil ini digunakan pada industrial water treatment

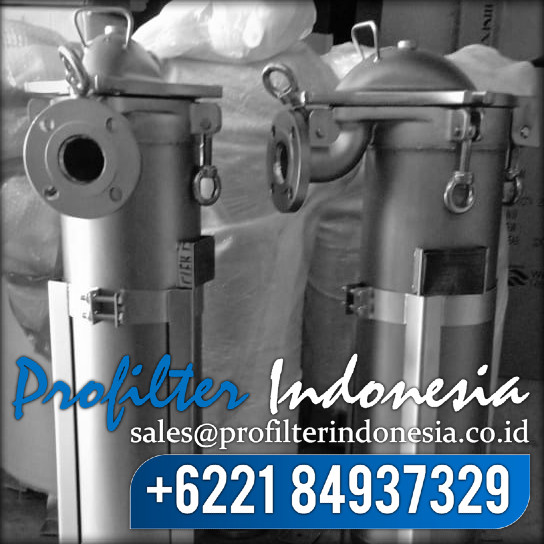

BFN vessels are available in Carbon Steel and 304 SS; 316 SS available on request.

Standard Features

·         Maximum working pressure BFN 11, 12-150 PSI, BFN 13, 14-150 and 300 PSI

·         Single gasket cover seal

·         Gasket materials available BUNA N, Neoprene EPR, Viton, Viton Teflon Encapsulated (others on request)

·         304 SS perforated basket for up to 75 PSI differential

·         Two inlet/outlet configurations

·         Same side inlet/outlet for easy manifolding

·         Low pressure drops

·         Variety of connections available in either NPT or flange BFN 11, 12-1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" BFN 13, 14-1", 1 1/4", 1 1/2", 2"

·         Permanently piped housing

·         Available with extra length legs, evacuation float

Options

·         Heavy duty baskets available

·         Additional connections including Sanitary Fittings and Socket Weld are available

·         BFNC 11, 12 ASME code versions available

BFN Series Bag Filter Vessels Specifications

Models : BFN11

Bag : Size 1

Flow Rate : 80 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2", 2 1/2", 3", 4"

Models : BFN12

Bag : Size 2

Flow Rate : 200 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2", 2 1/2", 3", 4"

Models : BFN13

Bag : Size 3

Flow Rate : 25 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2"

Models : BFN14

Bag : Size 4

Flow Rate : 40 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2"
